Another Hudson Thread?

[2railjon]

Bread and butter or all dolled up? Get both!
Sunset J1a in the lead, J3a Super Hudson trailing.

[De Bruin]

Collect them all! Nice roster there Jon, I like the de-shrouded J's with the scullin drivers. Pure brute power and speed.

Pete -- thanks for posting those links. The Frisco, Wabash, and C&NW examples are all handsome locomotives, assuming that one likes them all dolled up like that. I do, but only to a point -- I really like modeling the bread-and-butter workhorses like the NdeM version instead. Did you cherry pick those to show off the best of the litter, or were there so few that the streamlined examples were representative?

Believe it or not the C&NW's and Wabash were built with the shrouding and wore it to the knacker.
I prefer the au natural look too. NdeM's class indeed had a nice appearence, note the short tenders and big headlights, also and unlike virtually most others (AT&SF, CP notwithstanding) NdeM preserved at least one of them.

C&NW's had nine of these monsters and I believe they used exclusively for Overland Service on the Chi-Omaha main until downgrading to commuter service in their last two years.
https://www.railarchive.net/randomsteam/cnw4002.htm

The Frisco's were rebuilt from Pacifics, there were 10 of them and (I think) only three were were shrouded. They had their boilers enlarged when they were rebuilt and were quite powerful, again they look a lot nicer without the shrouding as per attached link (hubba-hubba)
https://thelibrary.org/lochist/frisco/f ... p00708.jpg

The Wabash's seven (fairly conventional aside from the smoke deflectors, side skirt and loud blue and white scheme !) were used on passenger trains, and only lasted about 10 years in service.
https://www.railarchive.net/randomsteam/wab702.htm

[2railjon]

[bob turner]

Well I'll be! Finally got some interest.
I do like the Dreyfuss. I will again dig up mine - it has homemade drivers (lots easier than spokes).

[2railjon]

[Bob Anson]

that's my paint job, was a factory (me) for Overland

[2railjon]

that's my paint job, was a factory (me) for Overland

Bob, you painted that Milwaukee Road Hudson? It’s the nicest paint I’ve ever seen on one! I drool every time I pull it up in the Brass Trains Archive!
https://brasstrains.com/BrassGuide/PDG/ ... 4?page=10&

[bob turner]

That is good!

Here is a not-so-good Hudson with homemade drivers and side rods cast from my patterns. Tender is a wood block. Runs.

Dreyfuss 019.jpg (928.94 KiB) Viewed 6599 times

[2railjon]

Looks like a beauty to me , Bob!!

[rogruth]

Looks like a beauty to me , Bob!!

I agree.

[R.K. Maroon]

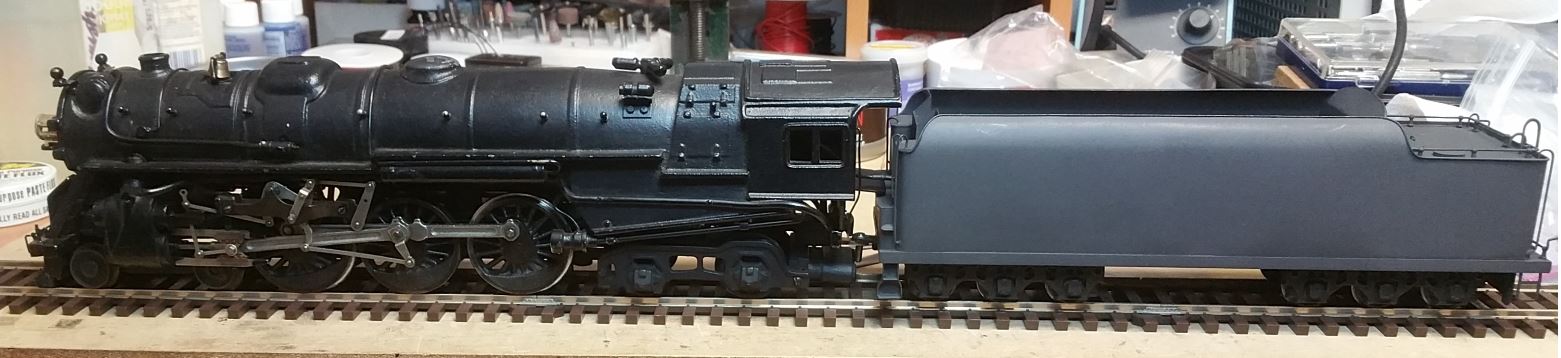

I am getting close on the restoration of my ScaleCraft Hudson. Here it is as of last night, ready for a layout test later this week:

SC Hudson -- Test Ready.JPG (97.52 KiB) Viewed 6519 times

Once I know the locomotive runs without problems then I will finish the paint job. The tender is, as best I can tell, a scratch-build, but of course if anybody recognizes it as something else, please let me know. It's nicely built, and I am not too bothered by the lack of rivets.

The eagle eyes out there may have noticed that there is something missing from the top of the boiler:

SC Hudson -- Missing Piece.JPG (59.51 KiB) Viewed 6519 times

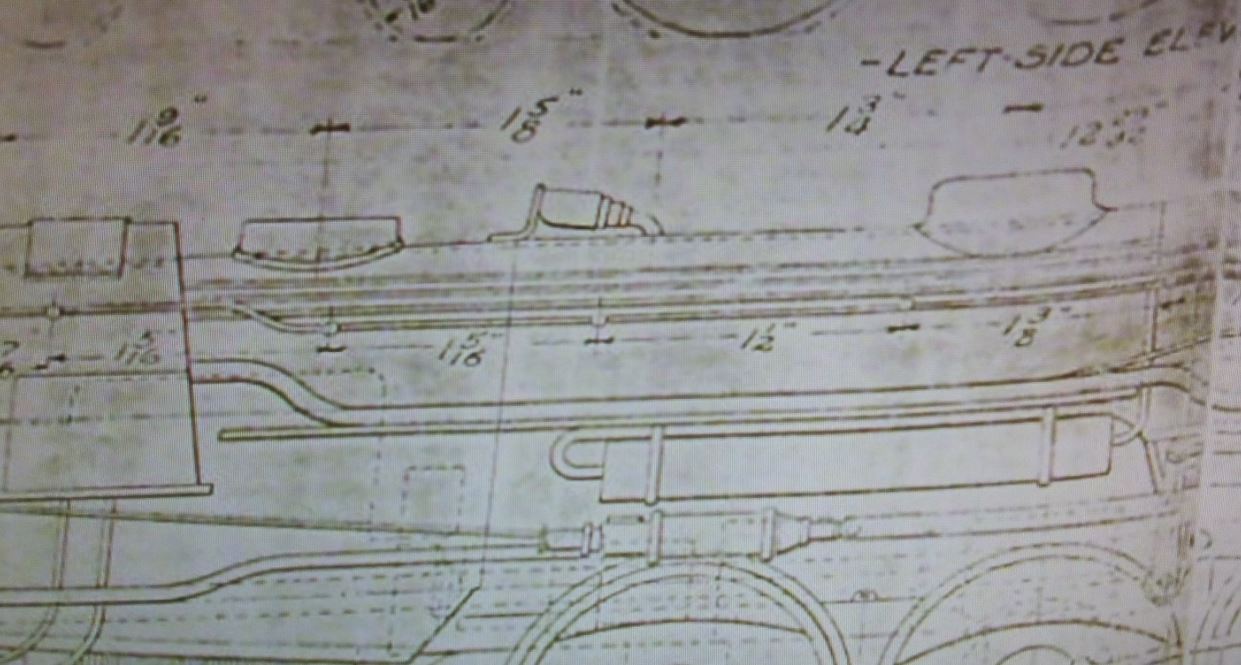

I am not an expert on steam and wasn't quite sure what was missing, but I found a few photographs of the original instruction drawing for this model. The drawing shows the missing piece:

SC Hudson -- Drawing Snip.JPG (106.37 KiB) Viewed 6519 times

Anybody know what this part is?

By the way, a friend located a suitable replacement for the rear wheelset of the trailing truck, which I mentioned in this thread a week or so ago. Rufus, thanks for the tip on Bill Davis. I never had to call him but that was a good idea.

Oh, and one last thing: again, the eagle eyes may have noticed the odd steam dome in the second photo. The model came from the factory with a rotating steam dome as a reverser. Somebody had removed it and mounted what looks like the business end of a carriage bolt. It was not perfect but I decided to clean it up a bit by filling the imperfections and sanding it smooth rather that replace it. I will prime this area and re-evaluate, but so far I am ok with it.

Jim

[roscaler]

I have a mounted set of spoke wheels with a tread OD of 1.022"
They appear to be cast iron. If you are interested please give me your address and they are yours.

Ron Dettmer
Orange Park FL

[R.K. Maroon]

Thank you, Ron -- That is the correct diameter (which I had not been able to find), and cast iron is perfect for this locomotive. I will send address via PM.

Much obliged!
JIm

[R.K. Maroon]

A friend contacted me offline to inform me that the missing item is the whistle. That makes sense, but I just hadn't seen one with a bracket like that shown in the drawing. Anybody know what style of whistle would be used here? PSC sells a couple of dozen different models:

PSC Whistles 01.JPG (105.86 KiB) Viewed 6500 times

PSC Whistles 02.JPG (89.14 KiB) Viewed 6500 times

Jim

[bob turner]

As a guess, Leslie 5 chime, there on the bottom. But if brass is ok, I can make one like the original Scale Craft if you want. Just a crude, oversize turning. I think the original is nickel silver.
